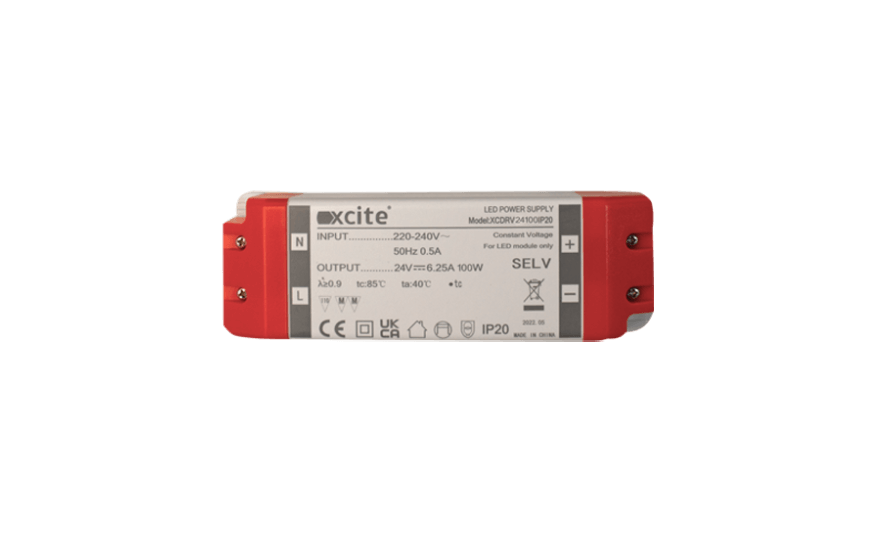

24V LED STRIP DRIVER

24V LED Driver for LED Strip Reels

Where to Buy
  • 24v driver
  • 24V LED Driver for XCITE LED Strip Reels
  • Short circuit and overload protection
  • Fixed output models available [Non-Dimmable]
  • Dimmable model available
30,000 Hours3 Years WarrantyDimmable DALI gear
24V LED STRIP DRIVER Installation Guide Icon

Installation Sheet
Order Code Description Data sheet Buy Now
XCDRV2450 50W - 24V LED Strip Driver - Non-Dimmable View Buy
XCDRV24100 100W - 24V LED Strip Driver Non-Dimmable View Buy
XCDRV2450D 50W - 24V LED Strip Driver - Dimmable View Buy
Order Code Description W Data sheet Buy Now
XCDRV2450 50W - 24V LED Strip Driver - Non-Dimmable 50 View Buy
XCDRV24100 100W - 24V LED Strip Driver Non-Dimmable 100 View Buy
XCDRV2450D 50W - 24V LED Strip Driver - Dimmable 50 View Buy
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCDRV2450 50W - 24V LED Strip Driver - Non-Dimmable 149 40 27 View Buy
XCDRV24100 100W - 24V LED Strip Driver Non-Dimmable 170 45 28 View Buy
XCDRV2450D 50W - 24V LED Strip Driver - Dimmable 175 58 22 View Buy

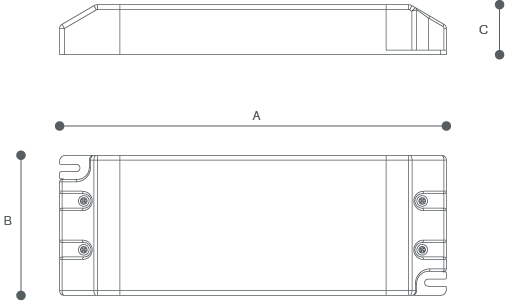

24V LED STRIP DRIVER Line Drawing
Order Code Description
XCDRV2450 50W - 24V LED Strip Driver - Non-Dimmable
XCDRV24100 100W - 24V LED Strip Driver Non-Dimmable
XCDRV2450D 50W - 24V LED Strip Driver - Dimmable

24V LED STRIP DRIVER Line Drawing
