CABINET LIGHT

Slimline Under Cupboard Cabinet Light

Where to Buy

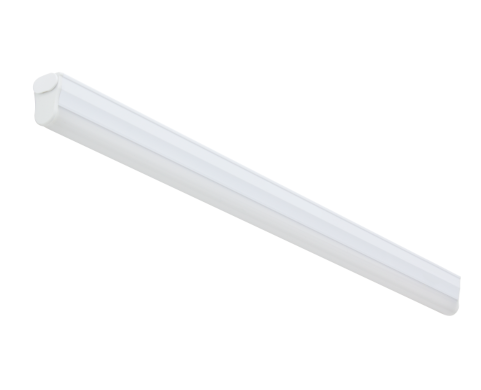

  • xcite cabinet light main

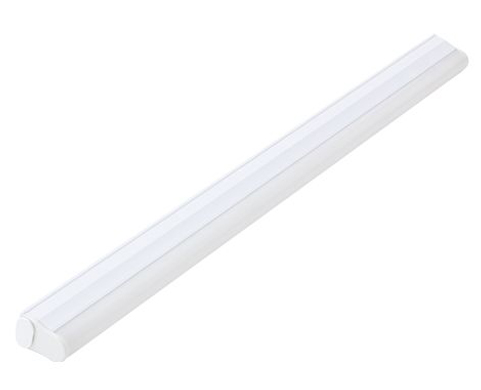

  • xcite cabinet light w

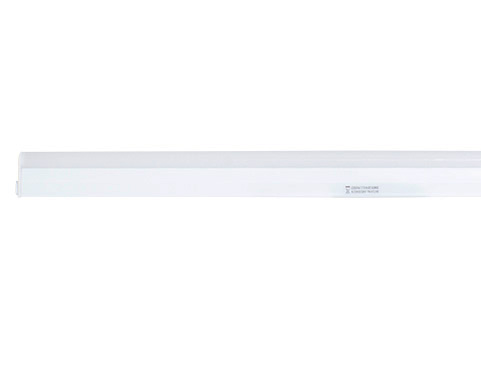

  • xcite cabinet light side
  • xcite cabinet light main
  • xcite cabinet light w
  • xcite cabinet light side
  • Ideal for replacement of linear fluorescent fixtures
  • Available in 5 lengths
  • Full set of connectors and accessories supplied
  • Slimline profile for discreet installation
  • Extruded plastic body
  • LED SMD modules array
  • Up to 113 lumens per watt efficacy
  • Available in warm white [3000K] or neutral white [4000K]
3000K - WW4000K - NW30,000 Hours3 Years Warranty
CABINET LIGHT Product Flyer Icon

Product Flyer
CABINET LIGHT Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Buy Now
XCUCL3NW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K View Buy
XCUCL3WW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K View Buy
XCUCL5NW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K View Buy
XCUCL5WW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K View Buy
XCUCL8WW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K View Buy
XCUCL8NW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K View Buy
XCUCL14WW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K View Buy
XCUCL14NW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K View Buy
XCUCL16WW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K View Buy
XCUCL16NW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Buy Now
XCUCL3NW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 3 300 100 View Buy
XCUCL3WW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 3 300 100 View Buy
XCUCL5NW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 5 500 100 View Buy
XCUCL5WW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 5 500 100 View Buy
XCUCL8WW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 8 800 100 View Buy
XCUCL8NW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 8 900 113 View Buy
XCUCL14WW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 14 1400 100 View Buy
XCUCL14NW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 14 1500 107 View Buy
XCUCL16WW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 16 1600 100 View Buy
XCUCL16NW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 16 1800 113 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCUCL3NW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 222 23 37 View Buy
XCUCL3WW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 222 23 37 View Buy
XCUCL5NW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 296 23 37 View Buy
XCUCL5WW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 296 23 37 View Buy
XCUCL8WW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 525 23 37 View Buy
XCUCL8NW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 525 23 37 View Buy
XCUCL14WW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 857 23 37 View Buy
XCUCL14NW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 857 23 37 View Buy
XCUCL16WW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K 1157 23 37 View Buy
XCUCL16NW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K 1157 23 37 View Buy

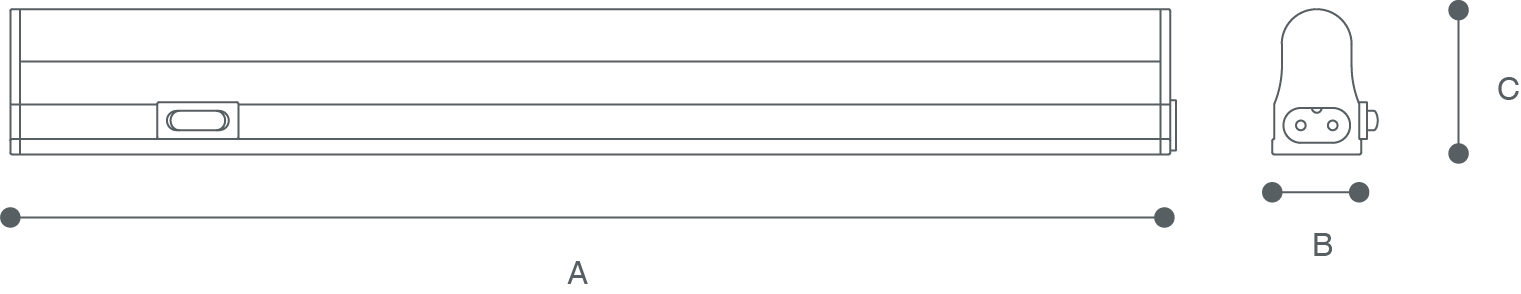

CABINET LIGHT Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCUCL3NW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K Energy Class C View Visit
XCUCL3WW 3W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K Energy Class D View Visit
XCUCL5NW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K Energy Class C View Visit
XCUCL5WW 5W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K Energy Class D View Visit
XCUCL8WW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K Energy Class D View Visit
XCUCL8NW 8W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K Energy Class C View Visit
XCUCL14WW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K Energy Class D View Visit
XCUCL14NW 14W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K Energy Class C View Visit
XCUCL16WW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 3000K Energy Class D View Visit
XCUCL16NW 16W - Slimline Under Cupboard Cabinet Light - IP20 - 4000K Energy Class C View Visit

CABINET LIGHT Line Drawing
