CIRCULAR CABINET LIGHT CC

Circular Under Cabinet Downlight with CCT Selector

Where to Buy

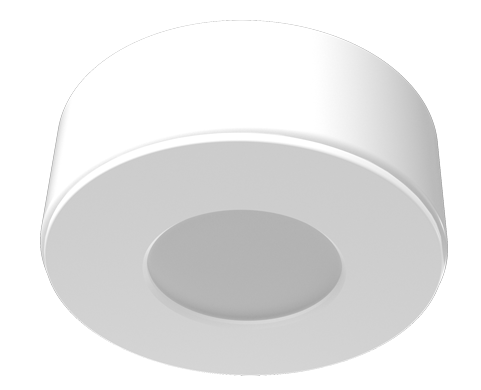

  • xcite white cabinet light web

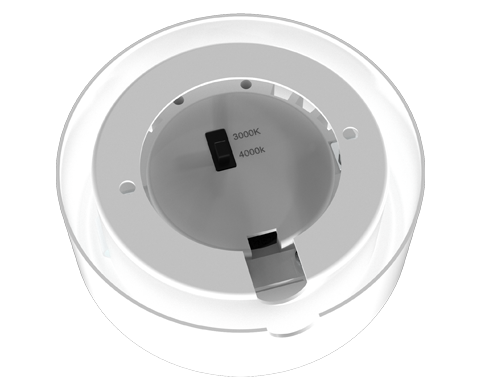

  • xcite white cabinet light switch web

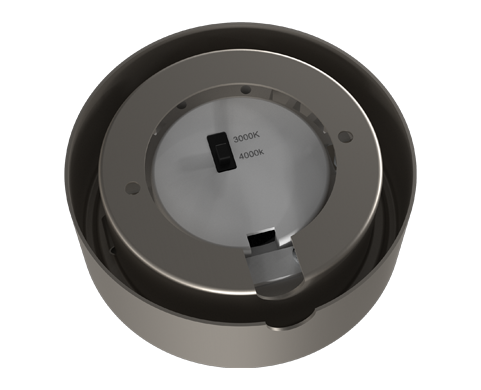

  • xcite sn cabinet light switch web

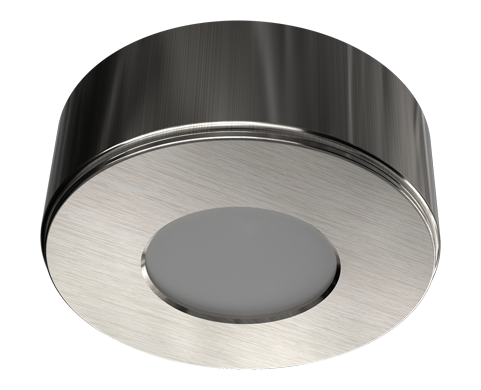

  • xcite sn cabinet light web
  • xcite white cabinet light web
  • xcite white cabinet light switch web
  • xcite sn cabinet light switch web
  • xcite sn cabinet light web
  • Available in white or satin nickel colour trims
  • Suitable for kitchen or wardrobe applications
  • LED circular under cabinet downlight
  • Can be surface or flush/recessed mounted
  • Complete with 1.5m of mains, 2 core cable
  • CCT [3000K/4000K] adjustable via 2-way selector switch
  • Pressed steel body
  • Frosted polycarbonate diffuser
  • Integral driver circuitry with mains input

Note: Please note dimensions relate to the 'surface' fitting [WITH TRIM]. The dimensions [WITHOUT TRIM] for recessed install are [Cut-out. 60mm] [Dia. 68mm] [C. 23mm]

3000K-4000K Tunable3 Years WarrantyIK08
CIRCULAR CABINET LIGHT CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCCDL3CTSN 3W - 3000K-4000K - Satin Nickel View Buy
XCCDL3CTW 3W - 3000K-4000K - White View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W lm/m Data sheet Buy Now
XCCDL3CTSN 3W - 3000K-4000K - Satin Nickel 3 240 80 240 View Buy
XCCDL3CTW 3W - 3000K-4000K - White 3 240 80 240 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Fix Dia.
(mm)		 Data sheet Buy Now
XCCDL3CTSN 3W - 3000K-4000K - Satin Nickel 27 48 73 View Buy
XCCDL3CTW 3W - 3000K-4000K - White 27 48 73 View Buy

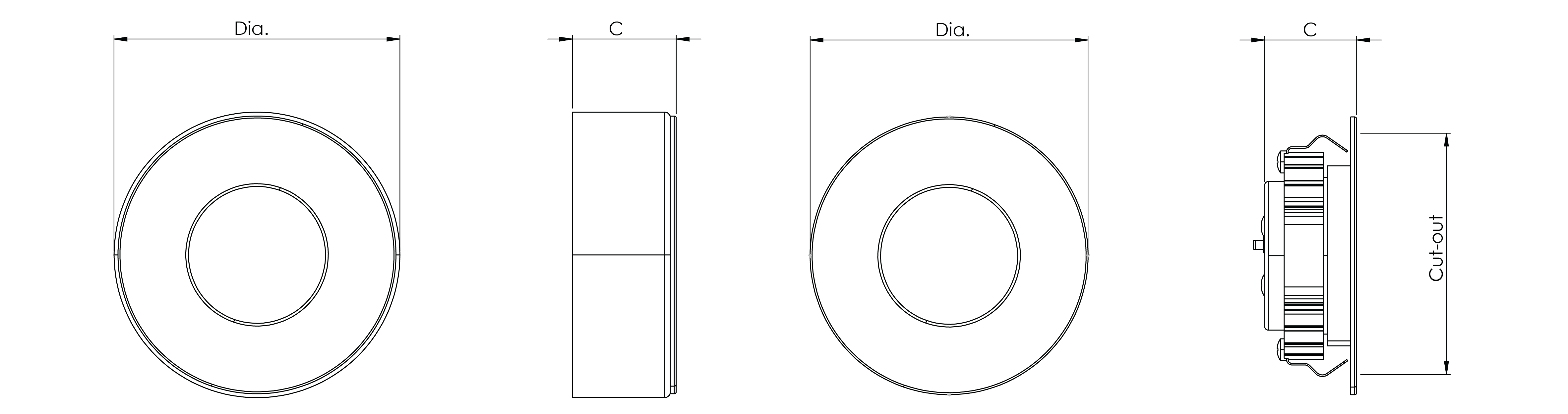

CIRCULAR CABINET LIGHT CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCCDL3CTSN 3W - 3000K-4000K - Satin Nickel Energy Class D View Visit
XCCDL3CTW 3W - 3000K-4000K - White Energy Class D View Visit

CIRCULAR CABINET LIGHT CC Line Drawing
