FLOODLIGHT

High Output Floodlight

Where to Buy

Ideal for retrofit of existing halogen fixtures, lighting buildings, car parks or doorways
Available with Photocell [50W & 80W outputs]

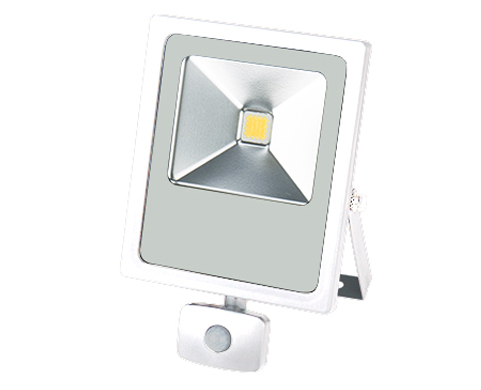

Available with PIR [Up to 50W]
Available in 6 sizes
Available in 8 different outputs
High quality toughened safety glass
Supplied with stirrup and 1m of flex for column, bracket or surface fix

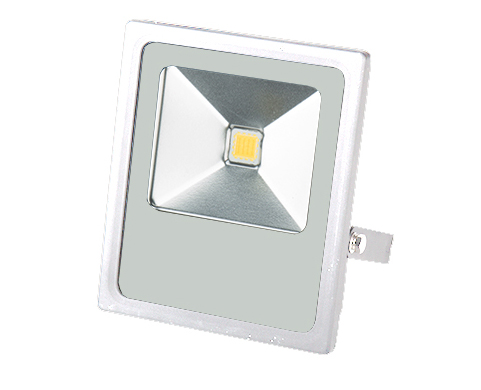

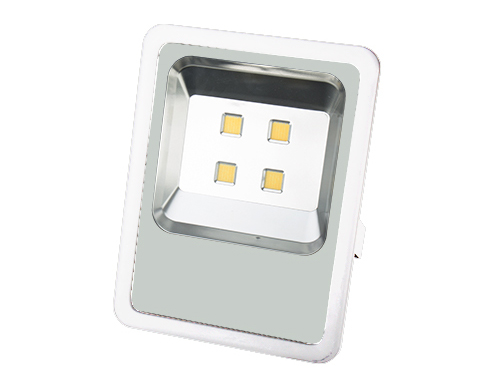

White or black body finish
Weatherproof IP65 construction
Breather gland for reducing condensation
Up to 102 lumens per watt efficacy
Available in warm white [3000K] or neutral white [4000K]

Product Flyer

Installation Sheet

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Colour Temperature (CCTK)

{"min":3000,"max":4000}

Order Code	Description	Data sheet	Buy Now
XCSF10WW	10W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF10WWP	10W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	View	Buy
XCSF10NW	10W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy
XCSF10NWW	10W - High Output Slim Floodlight IP65 - 4000K - White	View
XCSF10NWP	10W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Buy
XCSF10NWPW	10W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View
XCSF20WW	20W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF20WWP	20W - High Output Slim Floodlight IP65 - 3000K - PIR - Black	View	Buy
XCSF20NW	20W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy
XCSF20NWP	20W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Buy
XCSF20NWPW	20W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View
XCSF20NWW	20W - High Output Slim Floodlight IP65 - 4000K - White	View
XCSF30WWP	30W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	View	Buy
XCSF30WWW	30W - High Output Slim Floodlight IP65 - 3000K - White	View
XCSF30WW	30W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF30NWW	30W - High Output Slim Floodlight IP65 - 4000K - White	View
XCSF30NWP	30W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Buy
XCSF30NWPW	30W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View
XCSF30NW	30W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy
XCSF50WW	50W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF50WWW	50W - High Output Slim Floodlight IP65 - 3000K - White	View
XCSF50WWP	50W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	View	Buy
XCSF50NWW	50W - High Output Slim Floodlight IP65 - 4000K - White	View
XCSF50NWP	50W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Buy
XCSF50NW	50W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy
XCSF50NWPC	50W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	View	Buy
XCSF50NWPW	50W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View
XCSF80NW	80W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy
XCSF80NWPC	80W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	View	Buy
XCSF80NWW	80W - High Output Slim Floodlight IP65 - 4000K - White	View
XCSF100WWW	100W - High Output Slim Floodlight IP65 - 3000K - White	View
XCSF100WW	100W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF100NWW	100W - High Output Slim Floodlight IP65 - 4000K - White	View
XCSF100NW	100W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy
XCSF150WW	150W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF150NW	150W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy

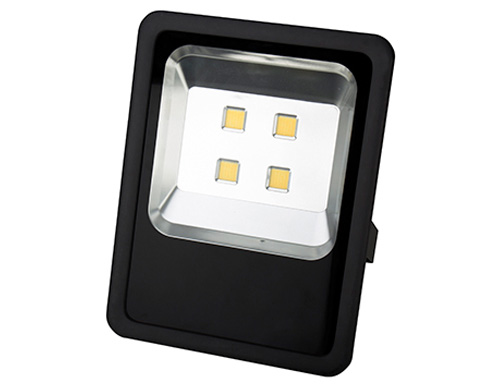

XCSF200WW	200W - High Output Slim Floodlight IP65 - 3000K - Black	View	Buy
XCSF200NW	200W - High Output Slim Floodlight IP65 - 4000K - Black	View	Buy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Colour Temperature (CCTK)

{"min":3000,"max":4000}

Order Code	Description	W	lm	lm/W	Data sheet	Buy Now
XCSF10WW	10W - High Output Slim Floodlight IP65 - 3000K - Black	10	700	70	View	Buy
XCSF10WWP	10W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	10	700	70	View	Buy
XCSF10NW	10W - High Output Slim Floodlight IP65 - 4000K - Black	10	800	80	View	Buy
XCSF10NWW	10W - High Output Slim Floodlight IP65 - 4000K - White	10	800	80	View
XCSF10NWP	10W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	10	800	80	View	Buy
XCSF10NWPW	10W - High Output Slim Floodlight IP65 - PIR - 4000K - White	10	800	80	View
XCSF20WW	20W - High Output Slim Floodlight IP65 - 3000K - Black	20	1400	70	View	Buy
XCSF20WWP	20W - High Output Slim Floodlight IP65 - 3000K - PIR - Black	20	1400	70	View	Buy
XCSF20NW	20W - High Output Slim Floodlight IP65 - 4000K - Black	20	1600	80	View	Buy
XCSF20NWP	20W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	20	1600	80	View	Buy
XCSF20NWPW	20W - High Output Slim Floodlight IP65 - PIR - 4000K - White	20	1600	80	View
XCSF20NWW	20W - High Output Slim Floodlight IP65 - 4000K - White	20	1600	80	View
XCSF30WWP	30W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	30	2400	80	View	Buy
XCSF30WWW	30W - High Output Slim Floodlight IP65 - 3000K - White	30	2400	80	View
XCSF30WW	30W - High Output Slim Floodlight IP65 - 3000K - Black	30	2400	80	View	Buy
XCSF30NWW	30W - High Output Slim Floodlight IP65 - 4000K - White	30	2700	90	View
XCSF30NWP	30W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	30	2700	90	View	Buy
XCSF30NWPW	30W - High Output Slim Floodlight IP65 - PIR - 4000K - White	30	2700	90	View
XCSF30NW	30W - High Output Slim Floodlight IP65 - 4000K - Black	30	2700	90	View	Buy
XCSF50WW	50W - High Output Slim Floodlight IP65 - 3000K - Black	50	4100	82	View	Buy
XCSF50WWW	50W - High Output Slim Floodlight IP65 - 3000K - White	50	4100	82	View
XCSF50WWP	50W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	50	4100	82	View	Buy
XCSF50NWW	50W - High Output Slim Floodlight IP65 - 4000K - White	50	4700	94	View
XCSF50NWP	50W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	50	4700	94	View	Buy
XCSF50NW	50W - High Output Slim Floodlight IP65 - 4000K - Black	50	4700	94	View	Buy
XCSF50NWPC	50W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	50	4700	94	View	Buy
XCSF50NWPW	50W - High Output Slim Floodlight IP65 - PIR - 4000K - White	50	4700	94	View
XCSF80NW	80W - High Output Slim Floodlight IP65 - 4000K - Black	80	6500	81	View	Buy
XCSF80NWPC	80W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	80	6500	81	View	Buy
XCSF80NWW	80W - High Output Slim Floodlight IP65 - 4000K - White	80	6500	81	View
XCSF100WWW	100W - High Output Slim Floodlight IP65 - 3000K - White	100	8300	83	View
XCSF100WW	100W - High Output Slim Floodlight IP65 - 3000K - Black	100	8300	83	View	Buy
XCSF100NWW	100W - High Output Slim Floodlight IP65 - 4000K - White	100	9500	95	View
XCSF100NW	100W - High Output Slim Floodlight IP65 - 4000K - Black	100	9500	95	View	Buy
XCSF150WW	150W - High Output Slim Floodlight IP65 - 3000K - Black	150	13400	90	View	Buy
XCSF150NW	150W - High Output Slim Floodlight IP65 - 4000K - Black	150	15300	102	View	Buy
XCSF200WW	200W - High Output Slim Floodlight IP65 - 3000K - Black	200	17000	85	View	Buy
XCSF200NW	200W - High Output Slim Floodlight IP65 - 4000K - Black	200	19400	97	View	Buy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Colour Temperature (CCTK)

{"min":3000,"max":4000}

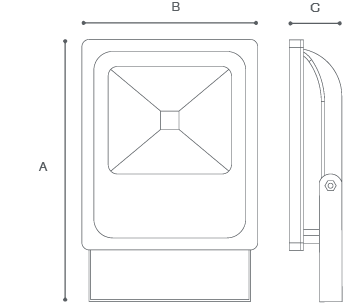

Order Code	Description	A (mm)	B (mm)	C (mm)	Data sheet	Buy Now
XCSF10WW	10W - High Output Slim Floodlight IP65 - 3000K - Black	153	110	40	View	Buy
XCSF10WWP	10W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	205	110	52	View	Buy
XCSF10NW	10W - High Output Slim Floodlight IP65 - 4000K - Black	153	110	40	View	Buy
XCSF10NWW	10W - High Output Slim Floodlight IP65 - 4000K - White	153	110	40	View
XCSF10NWP	10W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	205	110	52	View	Buy
XCSF10NWPW	10W - High Output Slim Floodlight IP65 - PIR - 4000K - White	205	110	52	View
XCSF20WW	20W - High Output Slim Floodlight IP65 - 3000K - Black	200	150	50	View	Buy
XCSF20WWP	20W - High Output Slim Floodlight IP65 - 3000K - PIR - Black	260	150	52	View	Buy
XCSF20NW	20W - High Output Slim Floodlight IP65 - 4000K - Black	200	150	50	View	Buy
XCSF20NWP	20W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	260	150	52	View	Buy
XCSF20NWPW	20W - High Output Slim Floodlight IP65 - PIR - 4000K - White	260	150	52	View
XCSF20NWW	20W - High Output Slim Floodlight IP65 - 4000K - White	200	150	50	View
XCSF30WWP	30W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	305	190	68	View	Buy
XCSF30WWW	30W - High Output Slim Floodlight IP65 - 3000K - White	305	190	64	View
XCSF30WW	30W - High Output Slim Floodlight IP65 - 3000K - Black	305	190	64	View	Buy
XCSF30NWW	30W - High Output Slim Floodlight IP65 - 4000K - White	305	190	64	View
XCSF30NWP	30W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	305	190	68	View	Buy
XCSF30NWPW	30W - High Output Slim Floodlight IP65 - PIR - 4000K - White	305	190	68	View
XCSF30NW	30W - High Output Slim Floodlight IP65 - 4000K - Black	305	190	64	View	Buy
XCSF50WW	50W - High Output Slim Floodlight IP65 - 3000K - Black	355	235	70	View	Buy
XCSF50WWW	50W - High Output Slim Floodlight IP65 - 3000K - White	355	235	70	View
XCSF50WWP	50W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	360	235	70	View	Buy
XCSF50NWW	50W - High Output Slim Floodlight IP65 - 4000K - White	355	235	70	View
XCSF50NWP	50W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	360	235	70	View	Buy
XCSF50NW	50W - High Output Slim Floodlight IP65 - 4000K - Black	355	235	70	View	Buy
XCSF50NWPC	50W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	360	235	70	View	Buy
XCSF50NWPW	50W - High Output Slim Floodlight IP65 - PIR - 4000K - White	360	235	70	View
XCSF80NW	80W - High Output Slim Floodlight IP65 - 4000K - Black	415	310	88	View	Buy
XCSF80NWPC	80W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	415	310	88	View	Buy
XCSF80NWW	80W - High Output Slim Floodlight IP65 - 4000K - White	415	310	88	View
XCSF100WWW	100W - High Output Slim Floodlight IP65 - 3000K - White	415	310	88	View
XCSF100WW	100W - High Output Slim Floodlight IP65 - 3000K - Black	415	310	88	View	Buy
XCSF100NWW	100W - High Output Slim Floodlight IP65 - 4000K - White	415	310	88	View
XCSF100NW	100W - High Output Slim Floodlight IP65 - 4000K - Black	415	310	88	View	Buy
XCSF150WW	150W - High Output Slim Floodlight IP65 - 3000K - Black	485	325	110	View	Buy
XCSF150NW	150W - High Output Slim Floodlight IP65 - 4000K - Black	485	325	110	View	Buy
XCSF200WW	200W - High Output Slim Floodlight IP65 - 3000K - Black	485	325	110	View	Buy
XCSF200NW	200W - High Output Slim Floodlight IP65 - 4000K - Black	485	325	110	View	Buy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Colour Temperature (CCTK)

{"min":3000,"max":4000}

Order Code	Description	ERP Instructions	EPREL Site
XCSF10WW	10W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF10WWP	10W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	View	Visit
XCSF10NW	10W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF10NWW	10W - High Output Slim Floodlight IP65 - 4000K - White	View	Visit
XCSF10NWP	10W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Visit
XCSF10NWPW	10W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View	Visit
XCSF20WW	20W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF20WWP	20W - High Output Slim Floodlight IP65 - 3000K - PIR - Black	View	Visit
XCSF20NW	20W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF20NWP	20W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Visit
XCSF20NWPW	20W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View	Visit
XCSF20NWW	20W - High Output Slim Floodlight IP65 - 4000K - White	View	Visit
XCSF30WWP	30W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	View	Visit
XCSF30WWW	30W - High Output Slim Floodlight IP65 - 3000K - White	View	Visit
XCSF30WW	30W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF30NWW	30W - High Output Slim Floodlight IP65 - 4000K - White	View	Visit
XCSF30NWP	30W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Visit
XCSF30NWPW	30W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View	Visit
XCSF30NW	30W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF50WW	50W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF50WWW	50W - High Output Slim Floodlight IP65 - 3000K - White	View	Visit
XCSF50WWP	50W - High Output Slim Floodlight IP65 - PIR - 3000K - Black	View	Visit
XCSF50NWW	50W - High Output Slim Floodlight IP65 - 4000K - White	View	Visit
XCSF50NWP	50W - High Output Slim Floodlight IP65 - PIR - 4000K - Black	View	Visit
XCSF50NW	50W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF50NWPC	50W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	View	Visit
XCSF50NWPW	50W - High Output Slim Floodlight IP65 - PIR - 4000K - White	View	Visit
XCSF80NW	80W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF80NWPC	80W - High Output Slim Floodlight IP65 - Photocell - 4000K - Black	View	Visit
XCSF80NWW	80W - High Output Slim Floodlight IP65 - 4000K - White	View	Visit
XCSF100WWW	100W - High Output Slim Floodlight IP65 - 3000K - White	View	Visit
XCSF100WW	100W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF100NWW	100W - High Output Slim Floodlight IP65 - 4000K - White	View	Visit
XCSF100NW	100W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF150WW	150W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF150NW	150W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
XCSF200WW	200W - High Output Slim Floodlight IP65 - 3000K - Black	View	Visit
XCSF200NW	200W - High Output Slim Floodlight IP65 - 4000K - Black	View	Visit
