FRD CC

Recessed Fire Rated Downlight with CCTK Selector

Where to Buy

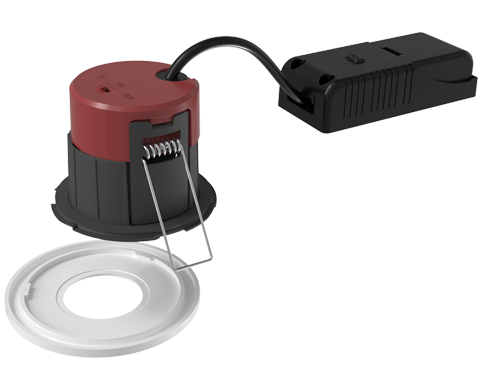

  • xcite frd cc
  • xcite frd cc switch

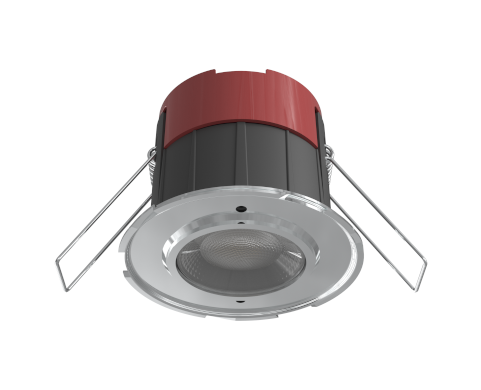

  • xcite frd cc bezeless

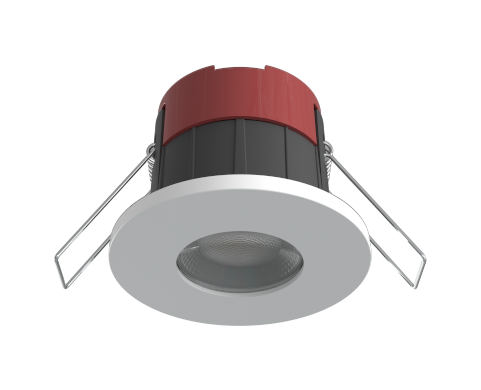

  • xcite frd cc white

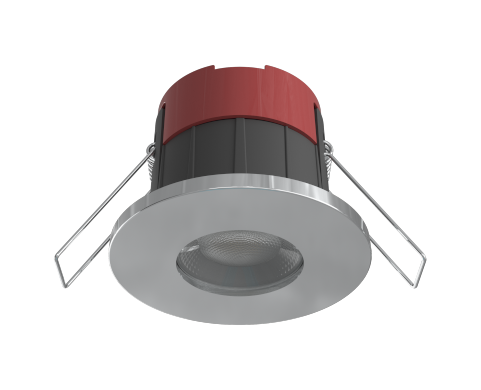

  • xcite frd cc chrome

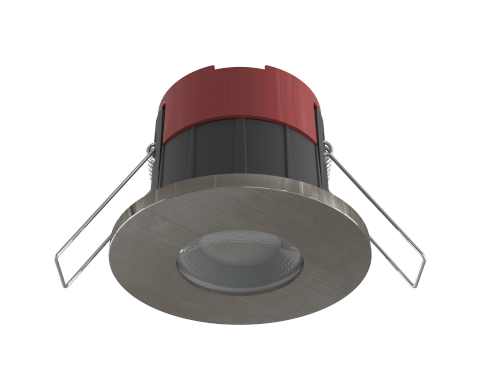

  • xcite frd cc satin nickel

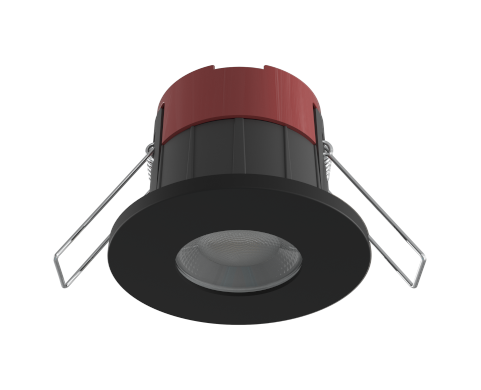

  • xcite frd cc black

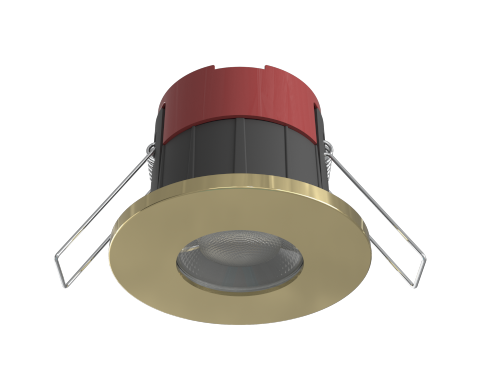

  • xcite frd cc brass
  • xcite frd cc
  • xcite frd cc switch
  • xcite frd cc bezeless
  • xcite frd cc white
  • xcite frd cc chrome
  • xcite frd cc satin nickel
  • xcite frd cc black
  • xcite frd cc brass
  • Ideal for retrofit of existing halogen downlight fixtures
  • Suitable for domestic applications
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Available in 5 different coloured bezels and 2 sizes [not included]
  • Dimmable as standard
  • Loop in/out mains connections with easy-fit connector
  • Convert to larger sized cut outs with the Conversion Plates
  • 30 minute fire rating with Staircraft I-Joist [Compatibility Matrix]
  • 30, 60 & 90 minute fire rating with solid timber joists
  • Steel body providing a high level of fire protection in accordance with Building Regulations Part B
  • Up to 100 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable
FRD CC Installation Guide Icon

Installation Sheet
Order Code Description Data sheet Light Planner Buy Now
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] View View Buy
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] 7 600-700 100 View View Buy
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] 60 62 75 View View Buy

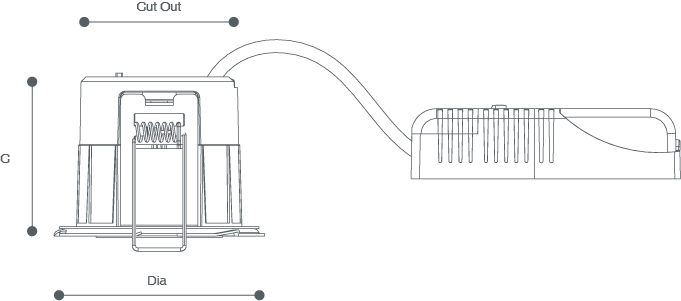

FRD CC Line Drawing
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] Energy Class B View Visit

FRD CC Line Drawing
