12V LED STRIP DRIVER
12V LED Driver for XCITE LED Strip Reels
- For use with single colour or RGB LED strip [dimmable not for use with RGB strip]
- Short circuit and overload protection
- 4 fixed output models available [non-dimmable]
- Phase cut dimmable LED Drivers for XCITE LED Strip reel [single colour strip only]
| Order Code | Description | Data sheet | Buy Now |
|---|---|---|---|

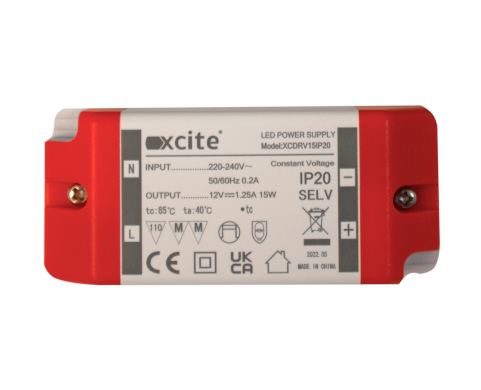

| XCDRV15 | 15W - 12V LED Strip Driver Non-Dimmable | View | Buy |

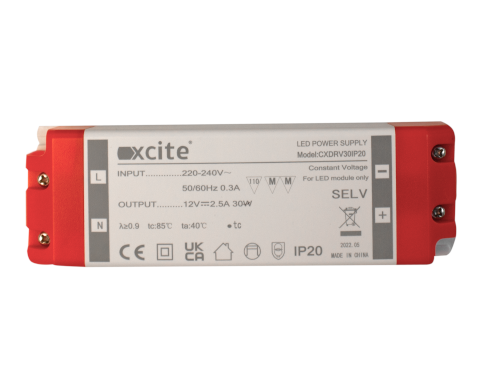

| XCDRV30 | 30W - 12V LED Strip Driver Non-Dimmable | View | Buy |

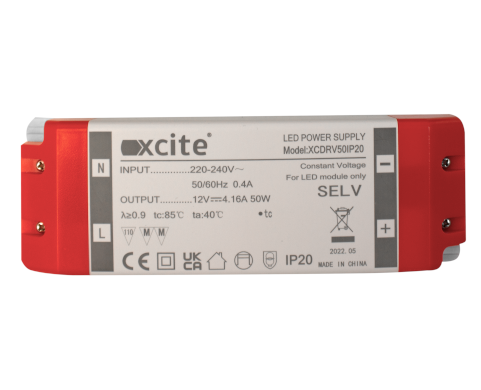

| XCDRV50 | 50W - 12V LED Strip Driver Non-Dimmable | View | Buy |

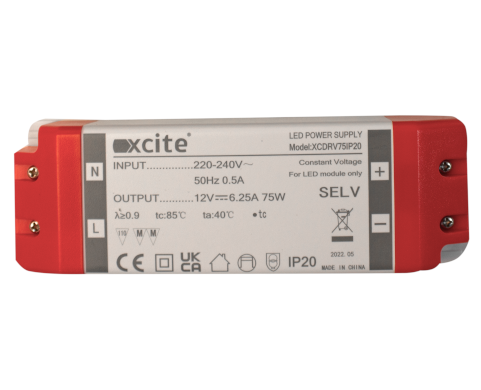

| XCDRV75 | 75W - 12V LED Strip Driver Non-Dimmable | View | Buy |
| XCDRV30D | 30W - 12V LED Dimmable Strip Driver | View | Buy |
| XCDRV50D | 50W - 12V LED Dimmable Strip Driver | View | Buy |
| XCDRV75D | 75W - 12V LED Dimmable Strip Driver | View | Buy |
| Order Code | Description | W | Data sheet | Buy Now |
|---|---|---|---|---|
| XCDRV15 | 15W - 12V LED Strip Driver Non-Dimmable | 15 | View | Buy |
| XCDRV30 | 30W - 12V LED Strip Driver Non-Dimmable | 30 | View | Buy |
| XCDRV50 | 50W - 12V LED Strip Driver Non-Dimmable | 50 | View | Buy |
| XCDRV75 | 75W - 12V LED Strip Driver Non-Dimmable | 75 | View | Buy |
| XCDRV30D | 30W - 12V LED Dimmable Strip Driver | 30 | View | Buy |
| XCDRV50D | 50W - 12V LED Dimmable Strip Driver | 50 | View | Buy |
| XCDRV75D | 75W - 12V LED Dimmable Strip Driver | 75 | View | Buy |

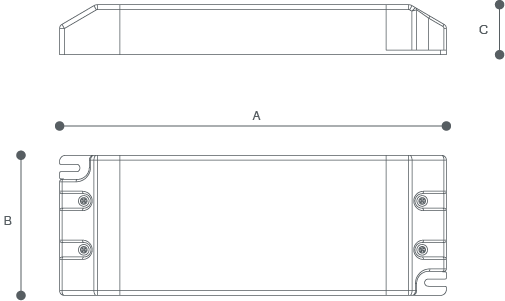

| Order Code | Description | A (mm) |
B (mm) |
C (mm) |
Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCDRV15 | 15W - 12V LED Strip Driver Non-Dimmable | 90 | 40 | 25 | View | Buy |
| XCDRV30 | 30W - 12V LED Strip Driver Non-Dimmable | 147 | 47 | 25 | View | Buy |
| XCDRV50 | 50W - 12V LED Strip Driver Non-Dimmable | 185 | 64 | 22 | View | Buy |
| XCDRV75 | 75W - 12V LED Strip Driver Non-Dimmable | 170 | 56 | 30 | View | Buy |
| XCDRV30D | 30W - 12V LED Dimmable Strip Driver | 170 | 57 | 33 | View | Buy |
| XCDRV50D | 50W - 12V LED Dimmable Strip Driver | 175 | 57 | 22 | View | Buy |
| XCDRV75D | 75W - 12V LED Dimmable Strip Driver | 205 | 71 | 37 | View | Buy |
| Order Code | Description |
|---|---|
| XCDRV15 | 15W - 12V LED Strip Driver Non-Dimmable |
| XCDRV30 | 30W - 12V LED Strip Driver Non-Dimmable |
| XCDRV50 | 50W - 12V LED Strip Driver Non-Dimmable |
| XCDRV75 | 75W - 12V LED Strip Driver Non-Dimmable |
| XCDRV30D | 30W - 12V LED Dimmable Strip Driver |
| XCDRV50D | 50W - 12V LED Dimmable Strip Driver |
| XCDRV75D | 75W - 12V LED Dimmable Strip Driver |
