PHOTOCELL

Wall Mounted External Photocell

Where to Buy

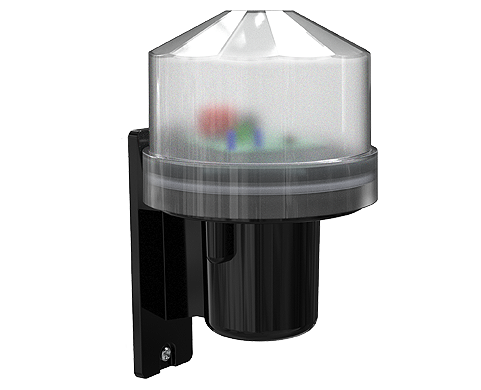

  • xcite photocell main

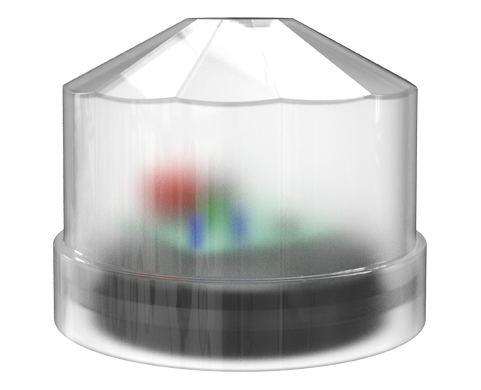

  • xcite photocell top
  • xcite photocell main
  • xcite photocell top
  • Suitable for switching exterior lighting circuits
  • Wall mounted
  • Low energy and maintenance free solution
  • Two-piece unit with NEMA socket base and head unit [Head unit can be ordered as separate item]
  • High quality polycarbonate construction
  • 10A Rating
  • Load rating: Max 2000W [10A] incandescent, Max 2 x 400W [10A] HPS. Max 600W [2.2A] LED
  • Switch on at <20 lux
3 Years WarrantyIP44
PHOTOCELL Installation Guide Icon

Installation Sheet

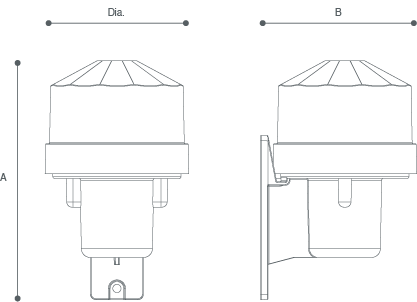

Order Code Description A
(mm)		 B
(mm)		 Dia.
(mm)		 Data sheet
XCPC Photocell Head and Bracket 133 87 80 View
XCPCH Photocell Head ONLY 62 80 View
