SURFACE LINEAR

Surface Linear Module

Where to Buy

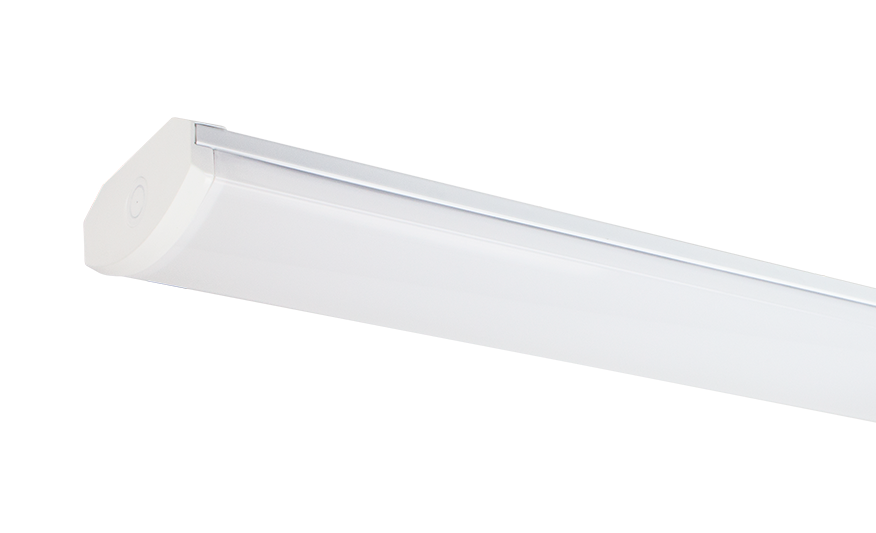

  • surface linear main
  • Suitable for schools, corridors and general areas
  • Available in 2 lengths and 2 outputs
  • Surface mounted
  • Steel body in white finish
  • Opal polycarbonate diffuser
  • Rear BESA fixings or side cable entry
  • Supplied as standard with neutral white [4000K] LED
4000K - NW3 Years WarrantyMaintained emergency 3hr (Option)Microwave sensor
SURFACE LINEAR Product Flyer Icon

Product Flyer
SURFACE LINEAR Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCSL433NWM3MS 33W - 4000K View
XCSL433NWMS 33W - 4000K View
XCSL433NWM3 33W - 4000K View Buy
XCSL433NW 33W - 4000K View View Buy
XCSL553NWM3MS 53W - 4000K View
XCSL553NWMS 53W - 4000K View
XCSL553NWM3 53W - 4000K View Buy
XCSL553NW 53W - 4000K View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCSL433NWM3MS 33W - 4000K 33 3900 118 View
XCSL433NWMS 33W - 4000K 33 3900 118 View
XCSL433NWM3 33W - 4000K 33 3900 118 View Buy
XCSL433NW 33W - 4000K 33 3900 118 View View Buy
XCSL553NWM3MS 53W - 4000K 53 6200 117 View
XCSL553NWMS 53W - 4000K 53 6200 117 View
XCSL553NWM3 53W - 4000K 53 6200 117 View Buy
XCSL553NW 53W - 4000K 53 6200 117 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCSL433NWM3MS 33W - 4000K 1203 154 70 View
XCSL433NWMS 33W - 4000K 1203 154 70 View
XCSL433NWM3 33W - 4000K 1203 154 70 View Buy
XCSL433NW 33W - 4000K 1203 154 70 View View Buy
XCSL553NWM3MS 53W - 4000K 1503 154 70 View
XCSL553NWMS 53W - 4000K 1503 154 70 View
XCSL553NWM3 53W - 4000K 1503 154 70 View Buy
XCSL553NW 53W - 4000K 1503 154 70 View View Buy

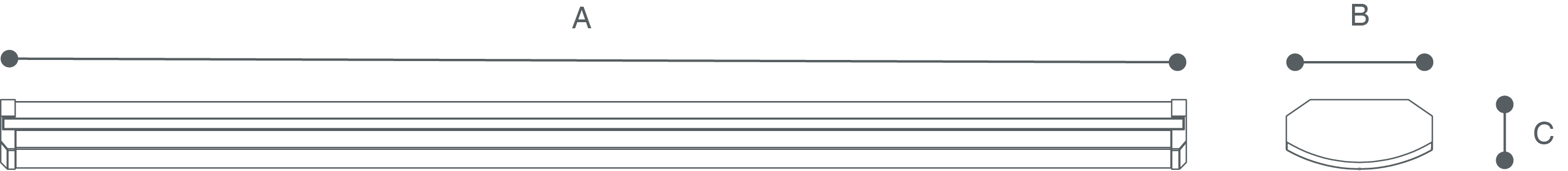

SURFACE LINEAR Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCSL433NWM3MS 33W - 4000K Energy Class C View Visit
XCSL433NWMS 33W - 4000K Energy Class C View Visit
XCSL433NWM3 33W - 4000K Energy Class C View Visit
XCSL433NW 33W - 4000K Energy Class C View Visit
XCSL553NWM3MS 53W - 4000K Energy Class C View Visit
XCSL553NWMS 53W - 4000K Energy Class C View Visit
XCSL553NWM3 53W - 4000K Energy Class C View Visit
XCSL553NW 53W - 4000K Energy Class C View Visit

SURFACE LINEAR Line Drawing
