FRD

(This product is now obsolete)

Recessed Fire Rated Downlight

Where to Buy
  • xcite frd
  • xcite frd 2
  • xcite frd
  • xcite frd 2
  • Ideal for retrofit of existing halogen downlight fixtures
  • Dimmable as standard
  • Available in 5 different coloured bezels
  • Loop in/out mains connections with integrated driver
  • Interchangeable FRD Bezels for FRD range [Sold Separately]
  • Chip-on-board LED source replicates Halogen appearance
  • Convert to larger sized cut outs with the Conversion Plates
  • 30 minute fire rating with Staircraft I-Joist [Compatibility Matrix]
  • Steel body with fire rated protection [30, 60 & 90 minute certification]
  • 3 hours emergency maintained with compatible conversion pack Emergency Pack
  • Up to 93 lumens per watt efficacy
3000K - WW4000K - NW30,000 Hours3 Years WarrantyIP65IK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable
FRD Product Flyer Icon

Product Flyer
FRD Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Light Planner Buy Now
XCFRD76WW 7W - Fire Rated Downlight - 3000K View View
XCFRD76NW 7W - Fire Rated Downlight - 4000K View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCFRD76WW 7W - Fire Rated Downlight - 3000K 7 600 86 View View
XCFRD76NW 7W - Fire Rated Downlight - 4000K 7 650 93 View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCFRD76WW 7W - Fire Rated Downlight - 3000K 85 62 80 View View
XCFRD76NW 7W - Fire Rated Downlight - 4000K 85 62 80 View View

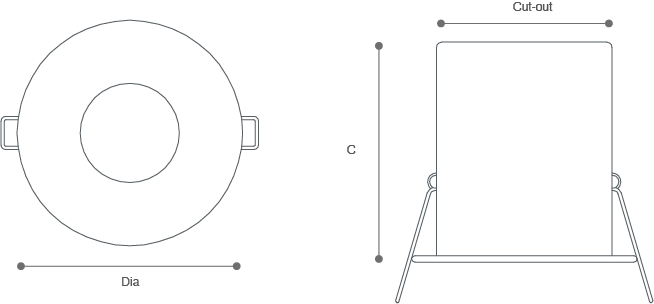

FRD Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFRD76WW 7W - Fire Rated Downlight - 3000K Energy Class E View Visit
XCFRD76NW 7W - Fire Rated Downlight - 4000K Energy Class E View Visit

FRD Line Drawing
